Zoukei-Mura has graciously provided the IPMS Reviewer Corps with a first look at their brand new 1/32nd scale Kawasaki Ki-100-I Otsu Type 5 Fighter. Parts 1 and 2 of this review looked at the box contents and initial assembly, respectively.

Part 1 can be viewed here: https://reviews.ipmsusa.org/review/kawasaki-ki-100-i-otsu-type-5-fighter-part-1-kit-inspection

Part 2 can be viewed here: https://reviews.ipmsusa.org/review/kawasaki-ki-100-i-otsu-type-5-fighter-part-2-assembly

Final Assembly Process

This is a box stock build with no aftermarket add-ons or modifications.

The Ki-100 is a high precision kit, and some may say overly engineered. For me, during final assembly process if there were any misfitted sub-assemblies, the tolerance stack-up errors would show during the later stages since gaps or misalignment issues surfaced. So, it is imperative to make sure during the early steps, parts are assembled precisely. This may include restraining yourself from gluing the parts together until you have a high level of confidence for a perfect assembly. Multiple check fits are highly recommended.

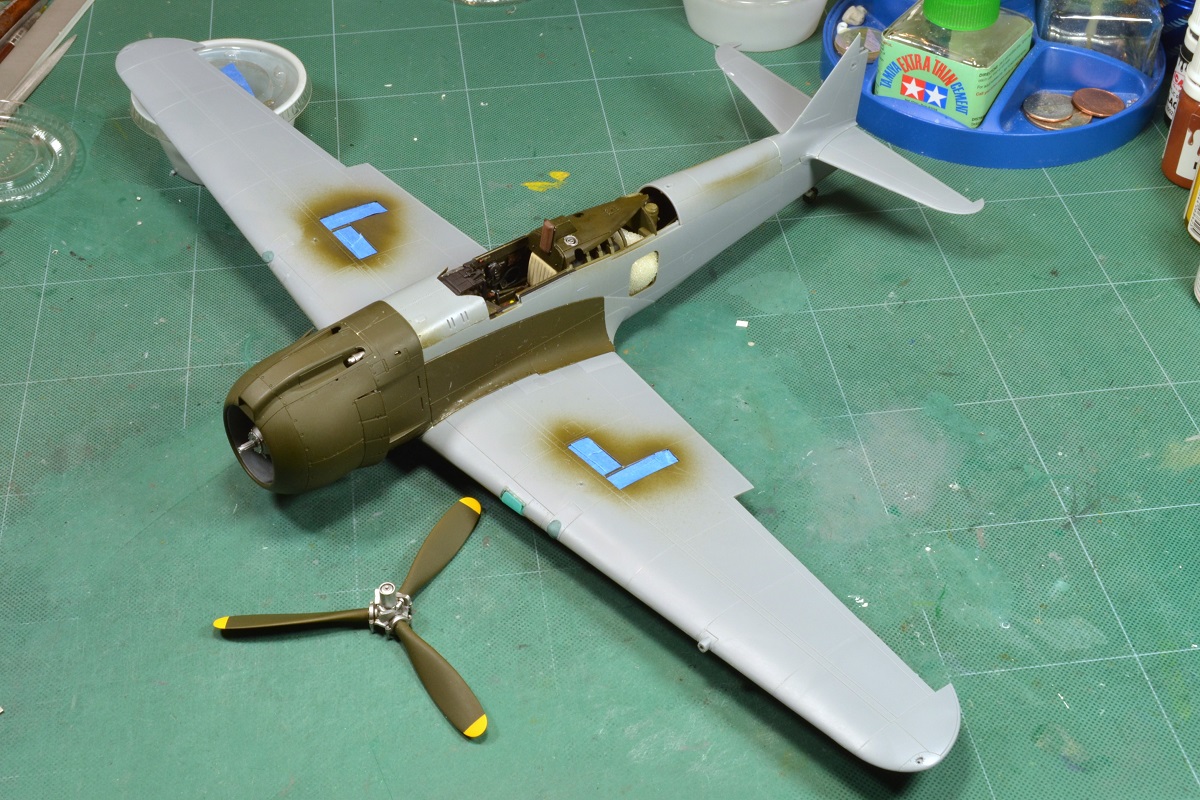

During the fuselage assembly with the wing-to-body fairing, there are thickness steps when lapping the parts together. Be prepared to sand down part edges to reduce the step height. This will also need to be done for the trailing edges of the control surfaces (ailerons, elevators, and rudder) to obtain sharp edges.

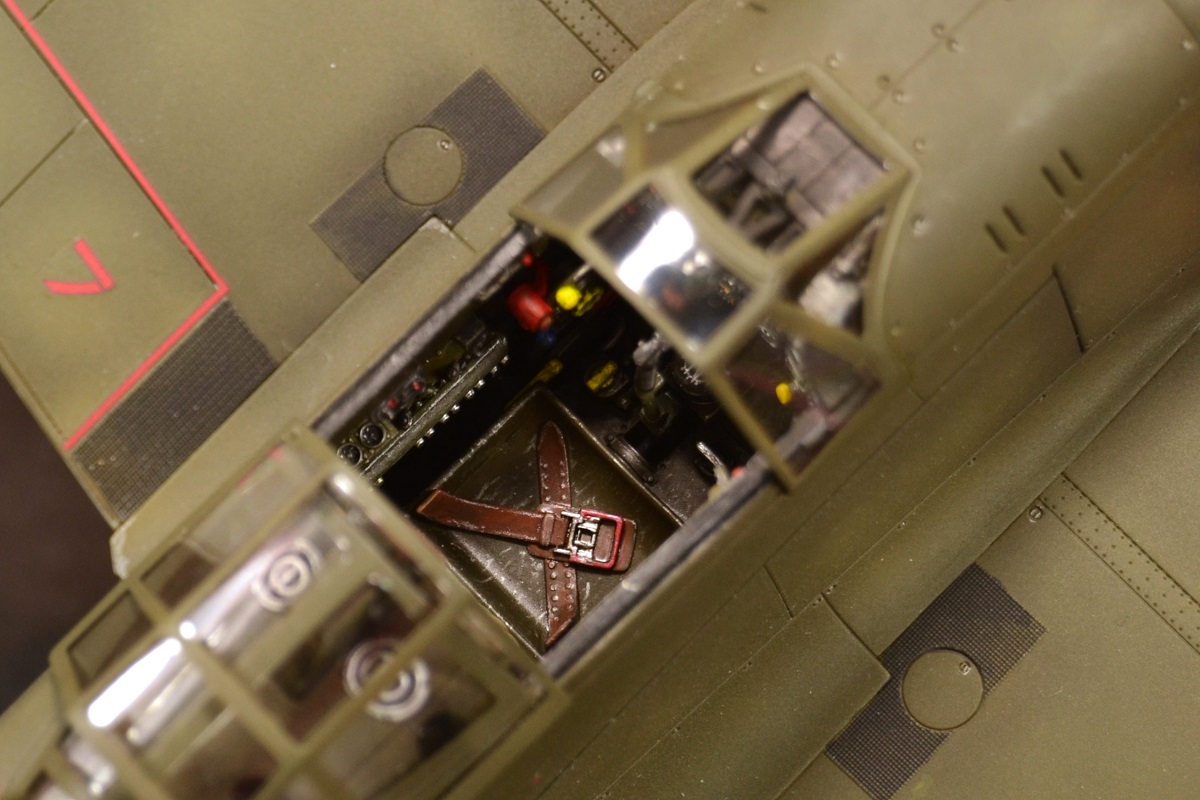

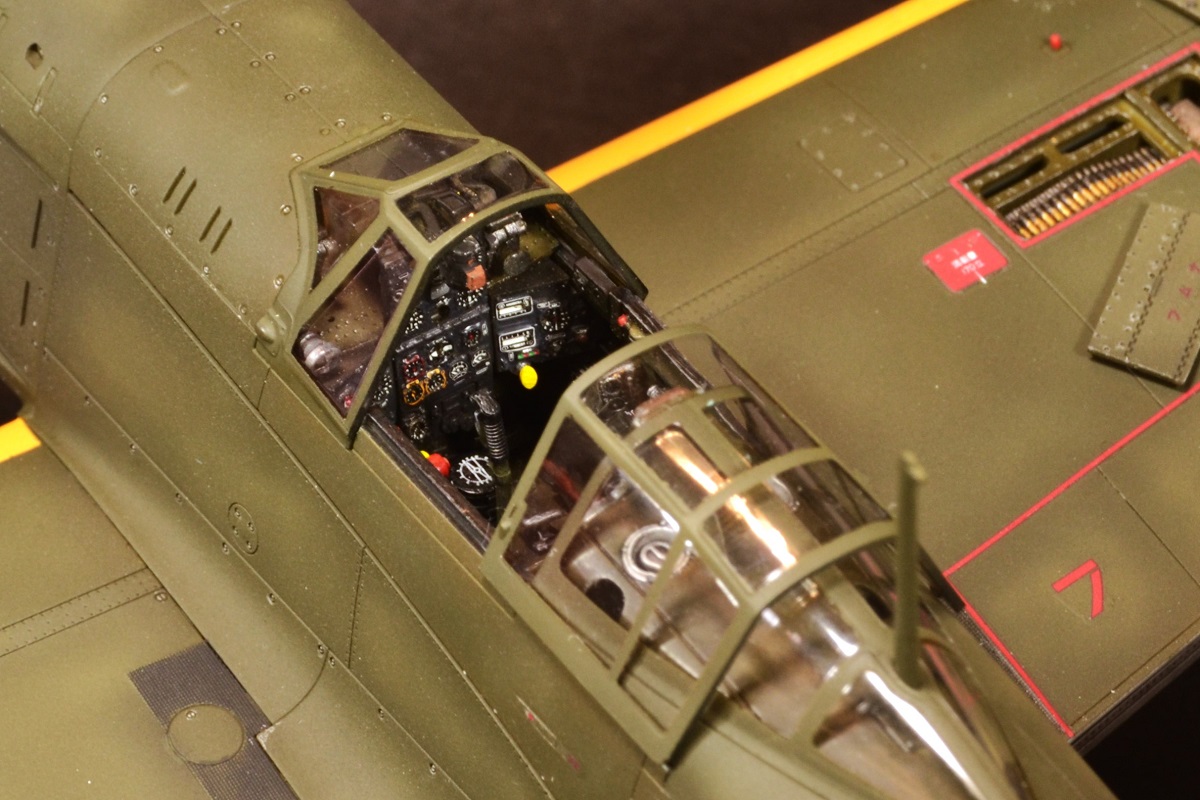

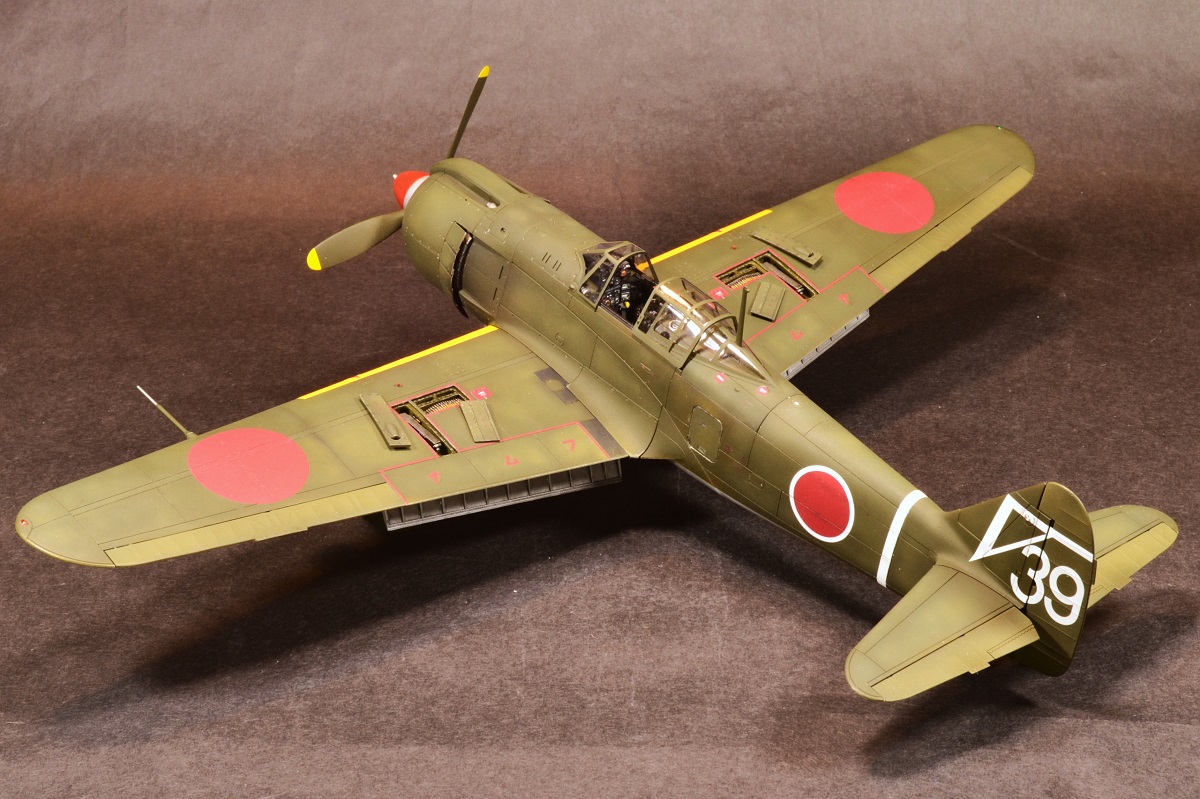

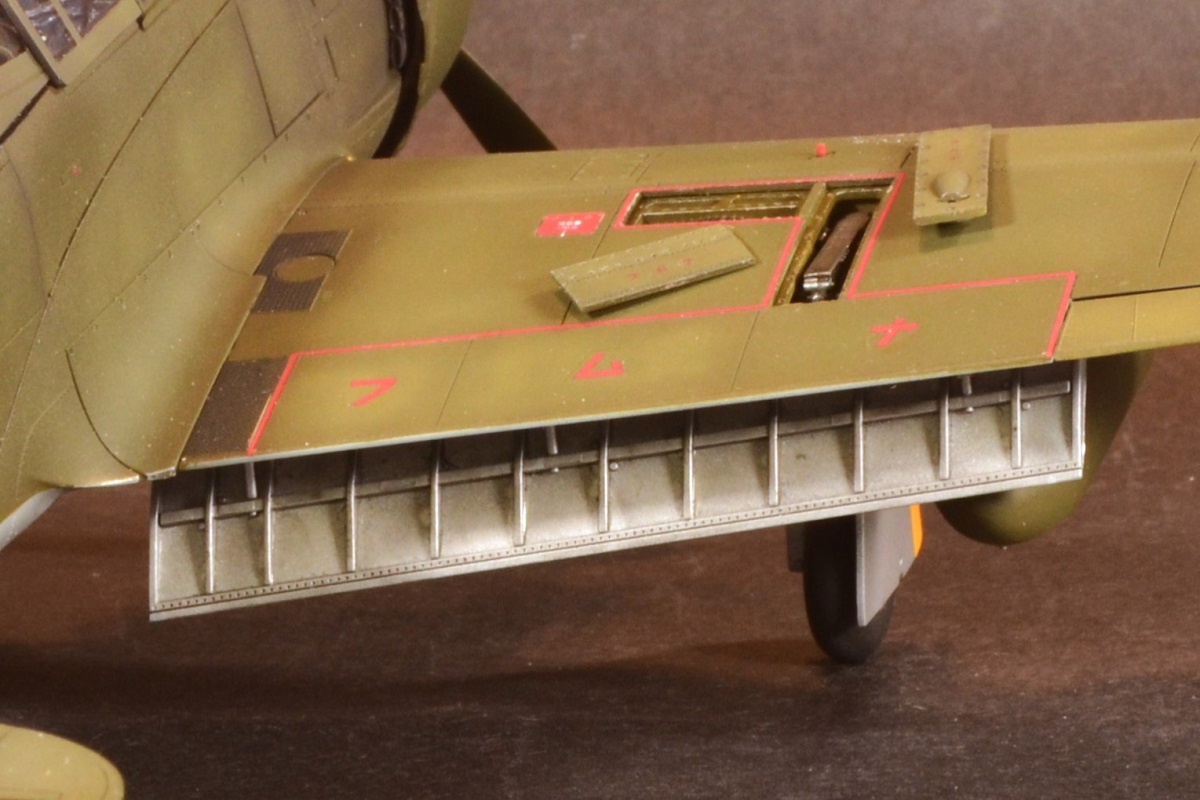

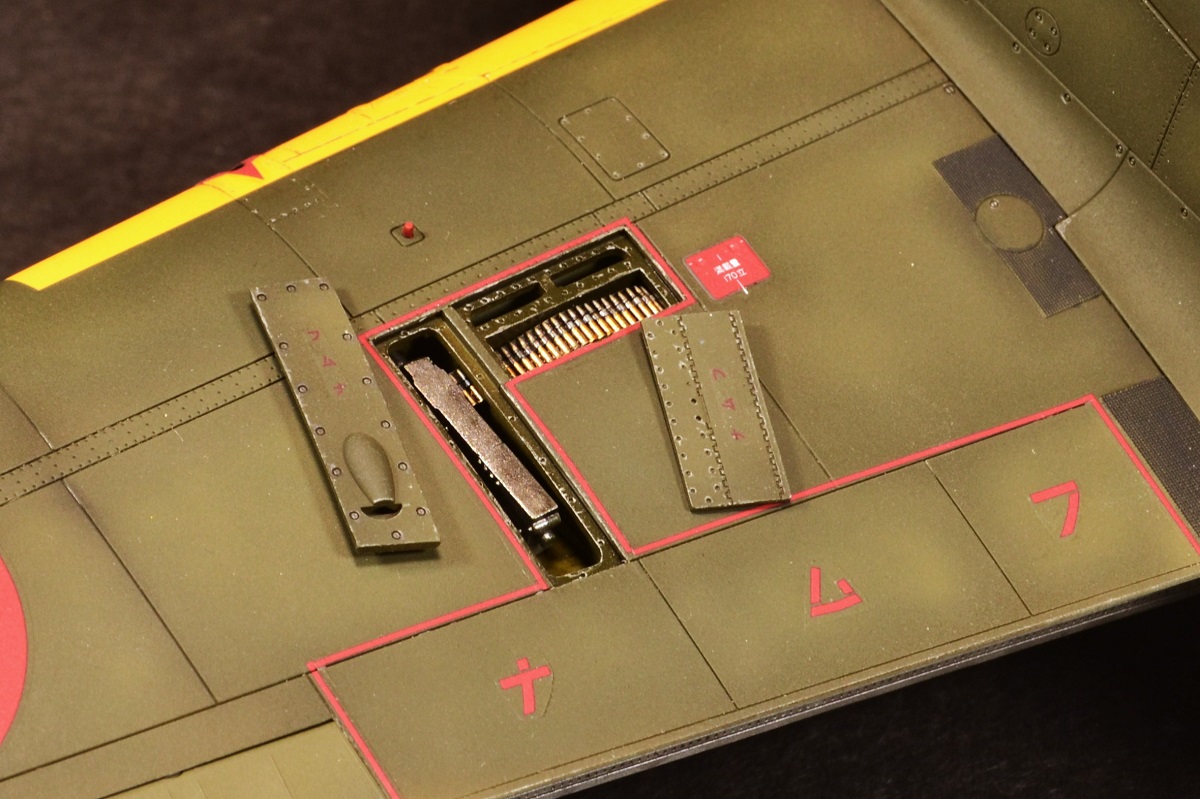

Throughout the final assembly process, decisions will need to be made on what panels will be left open (or off) and display the nice interior detail. On the flip side, difficult decisions to install some panels will hide the nice detail work that will never be seen again (but you know it’s there).

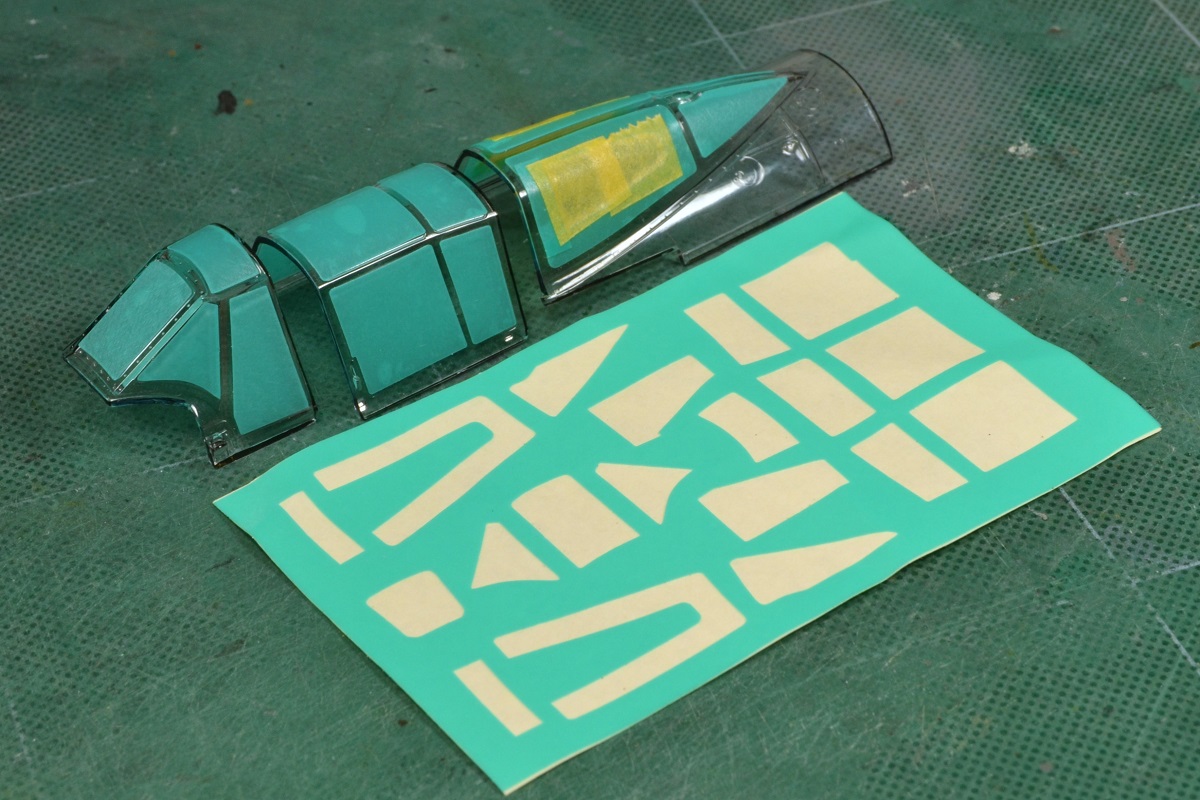

A nice feature by Zoukei-Mura is the included canopy masking. It will save time and the fit is excellent. This will allow the builder a quicker path to the painting booth.

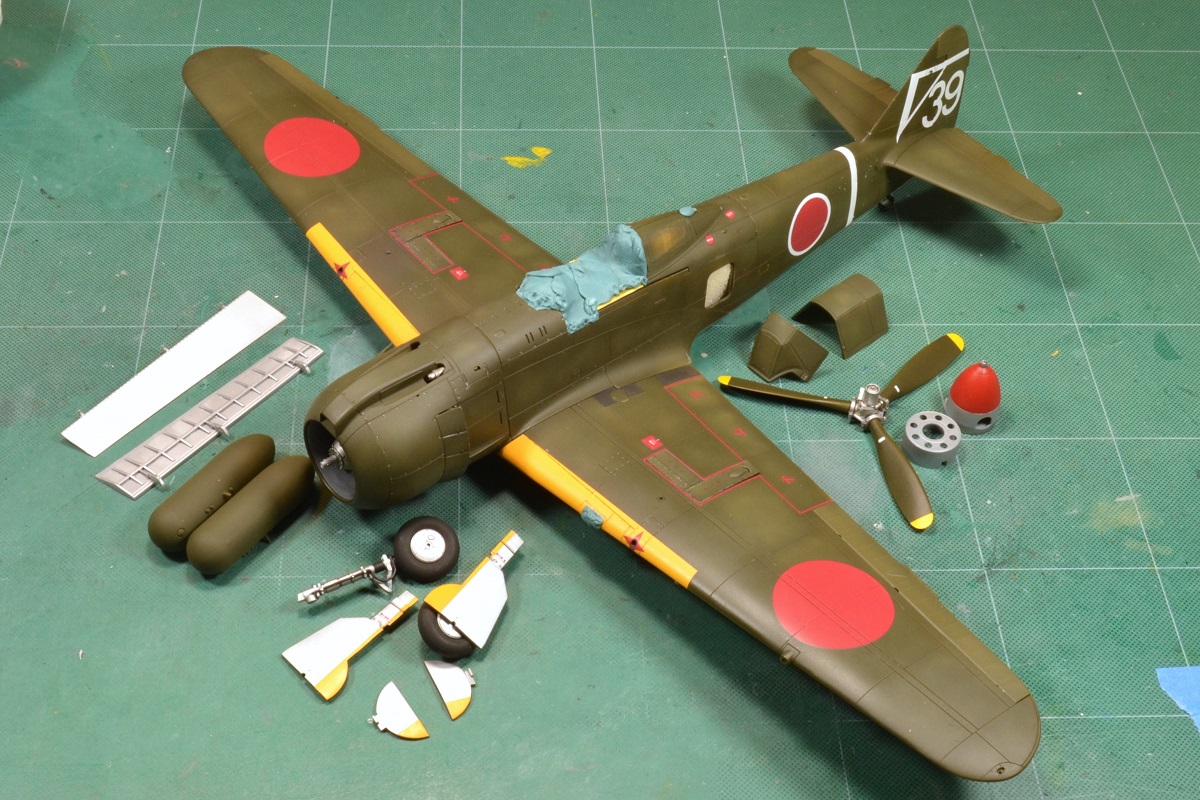

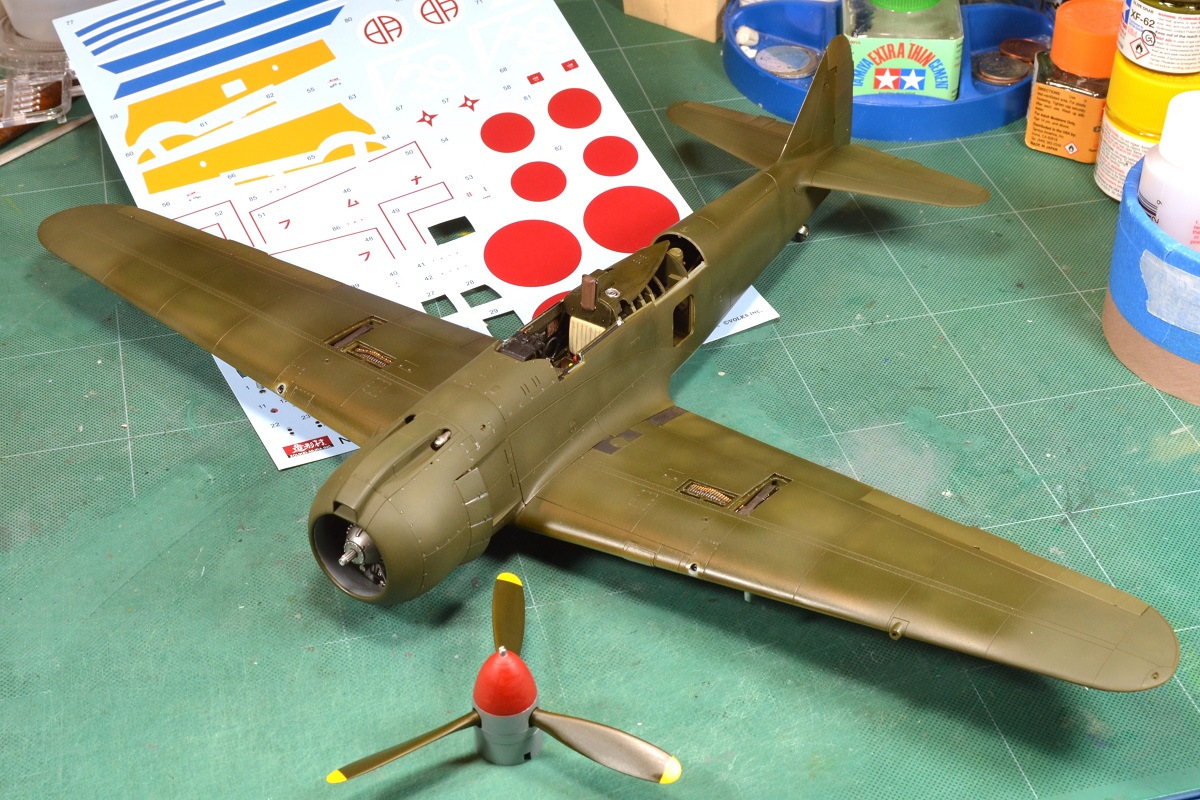

Two decal options are available, and I chose to do the one not on the box art. The decals are traditional waterslide and have very little edge film. After painting and prior to decaling, I applied a gloss coat. The decals went down well with Micro Sol and for areas that had more of a complex surface, I used Solvaset.

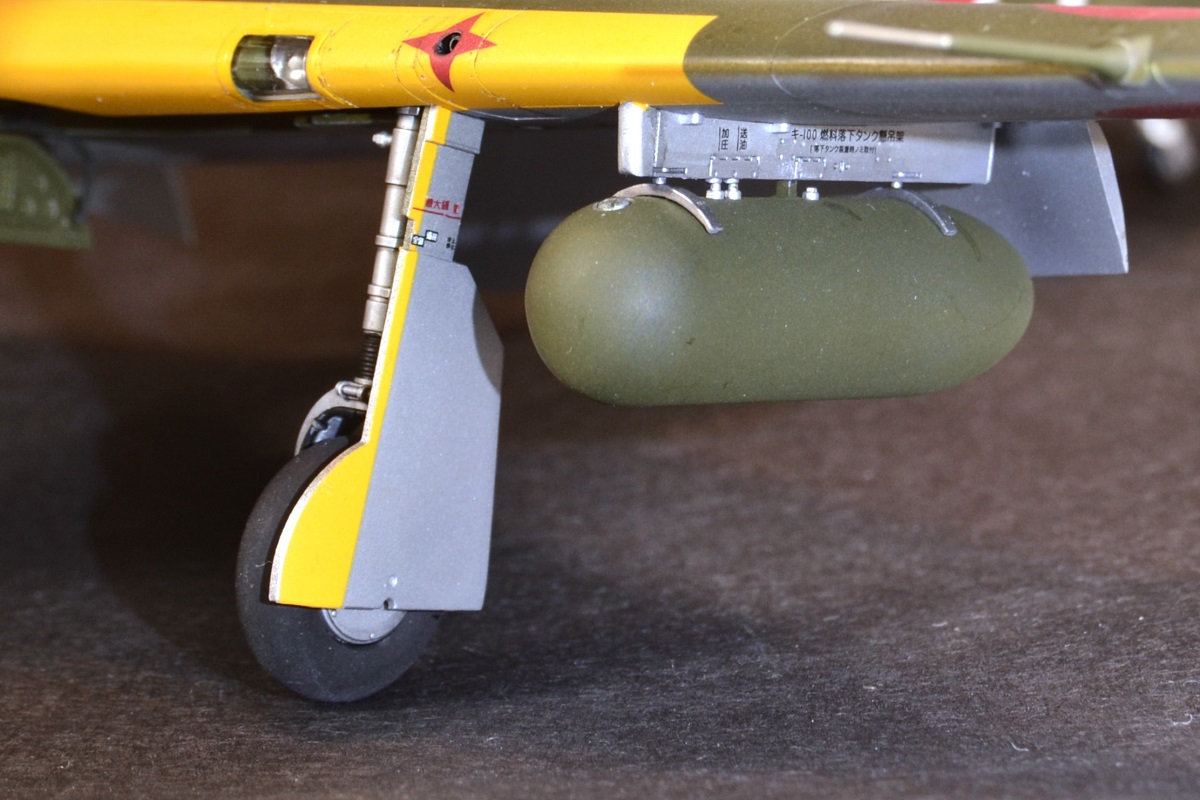

As you get near the end when installing the landing gear, you will notice all the extra internal detail that Zoukei-Mura has added will make the plane heavier than normal. So, for serious builders/collectors who plan to hang on to this model for a long time, it is recommended you buy a metal landing gear set. This will give the final build longevity and resistance to the strain of gravity over time. Also, I would recommend replacing the wingtip pitot probe with a metal one in case accidental bumps may cause breakage.

During the final assembly process, all the parts fit nicely together. Any issues that did surface were due to early sub-assembly errors (by me) and not the kit. Fortunately, I was able to remedy the problems that arose, but it did take some modeling skills to get there.

Overall, this build took longer than I had planned but the journey of finishing it was rewarding.

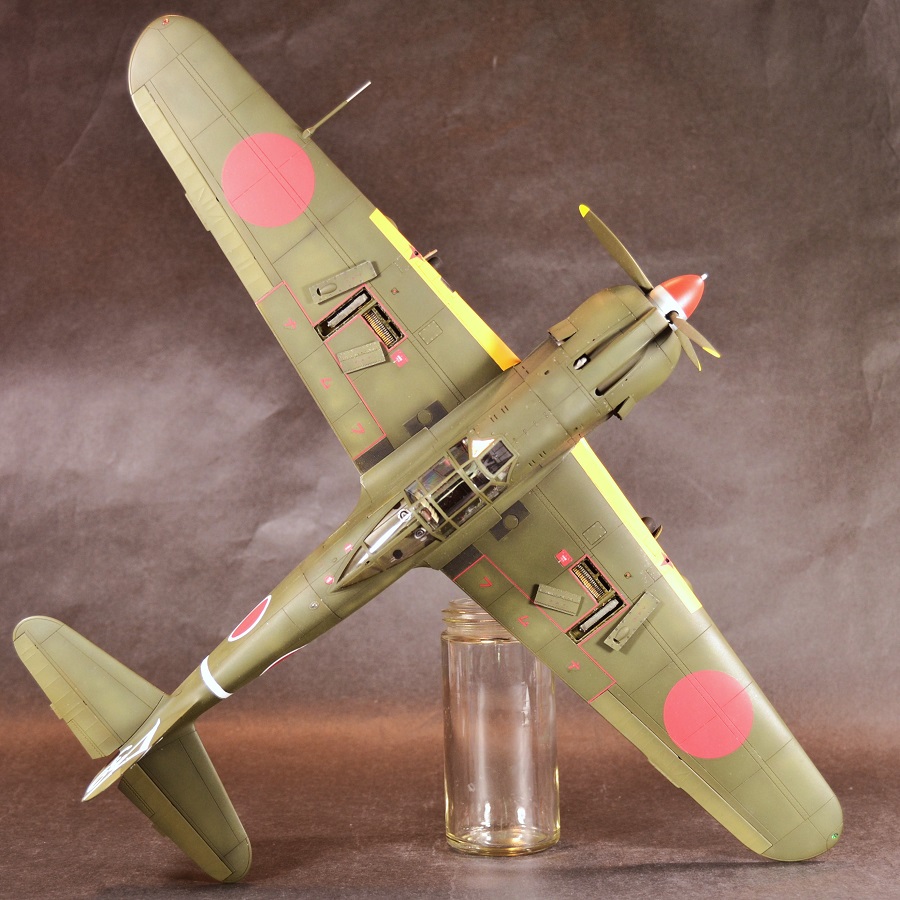

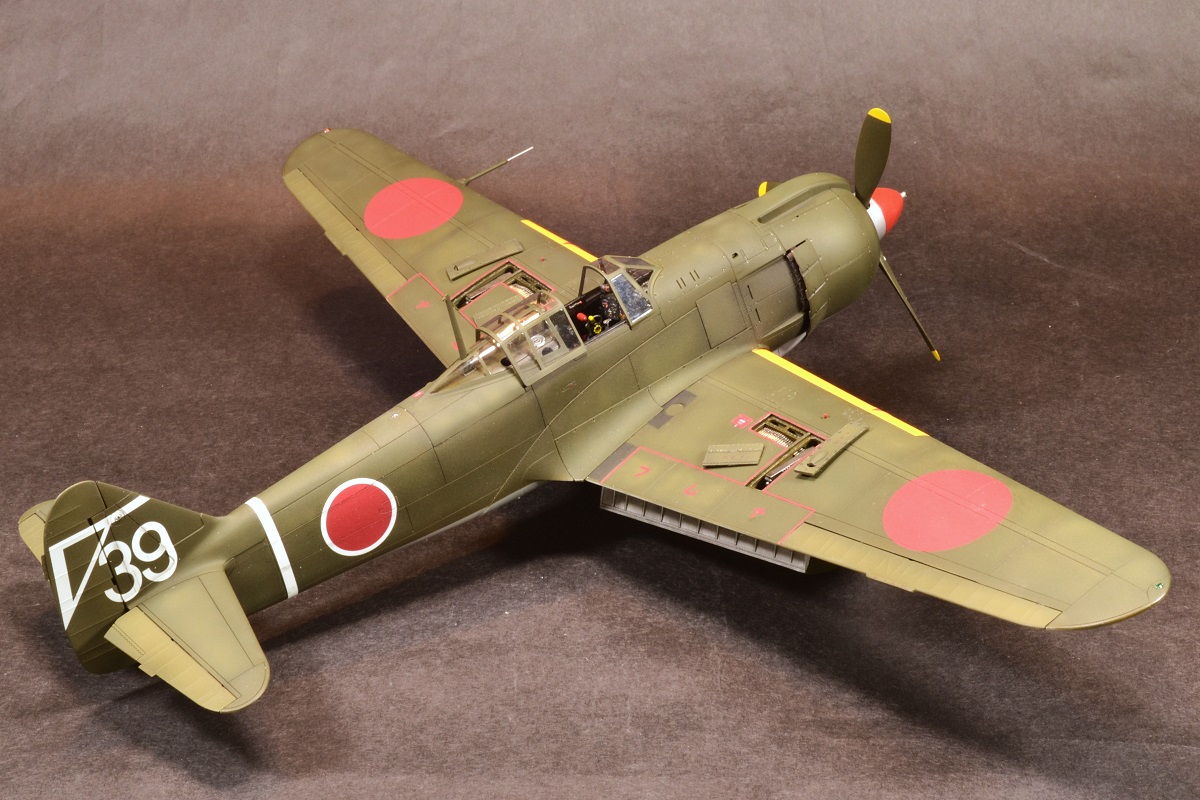

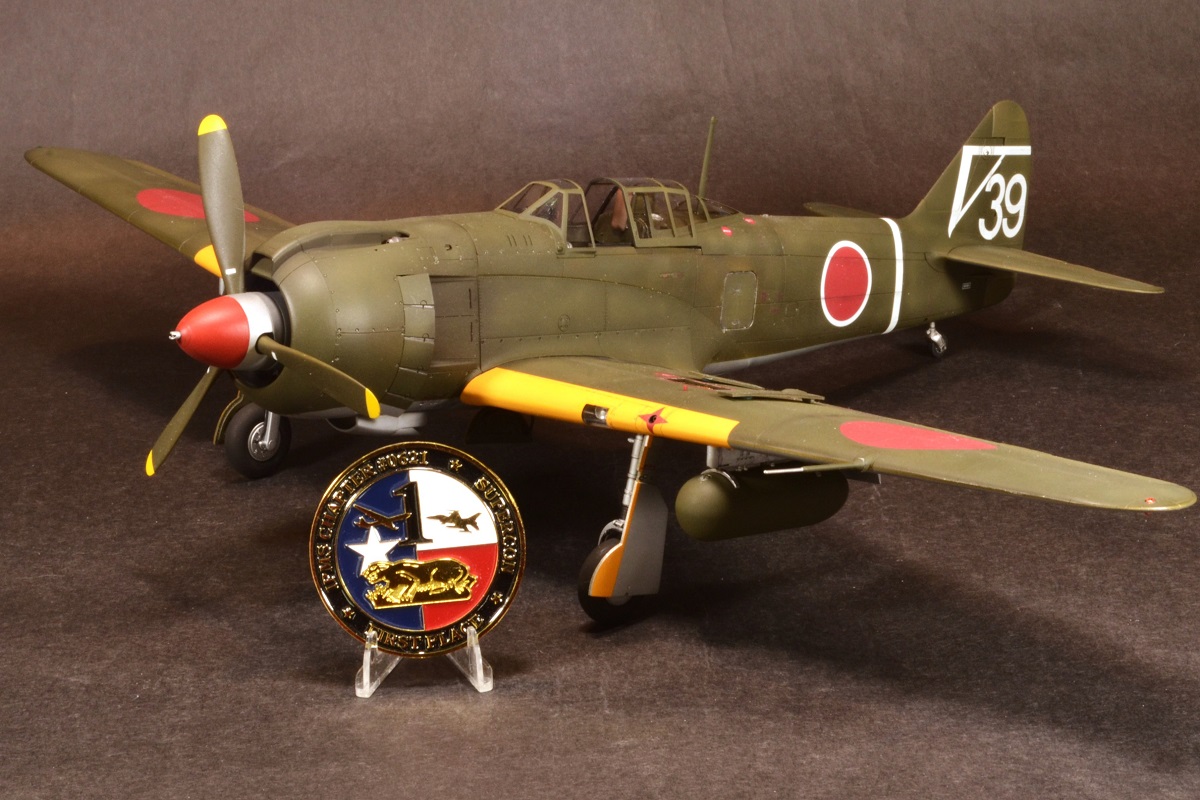

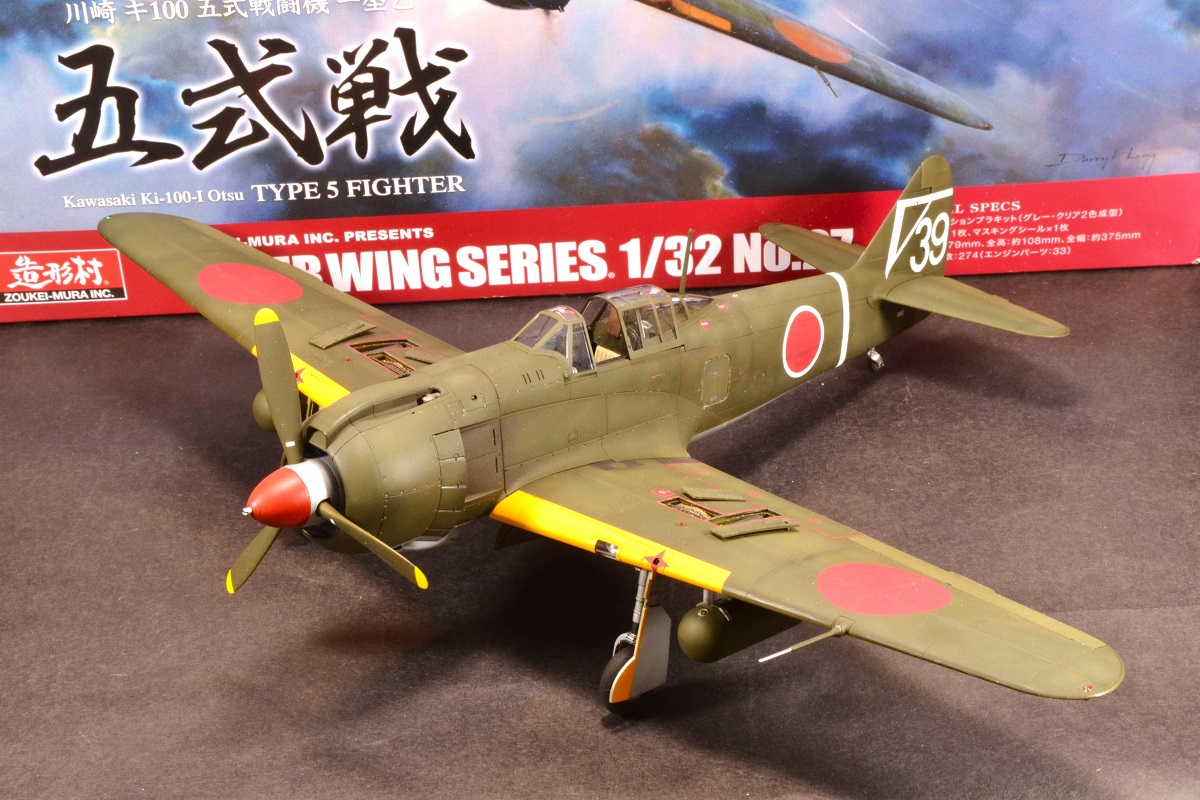

Fortunately, I finished this on a Friday night before an IPMS regional show the next day (IPMS-Fort Worth, TX, SuperCon 2026). I am happy to report it took 1st place in its category and proves a winner can be created from this kit straight out of the box.

Conclusion for Part 3 of the Completed Build:

This is a premium kit with lots of detail and carefully thought-out engineering. This is not a kit for beginners. This is a precision model geared towards advanced to expert builders.

In travel, there are folks who prefer to get to the destination (finish the build) and then there are folks who look forward to the journey (the assembly process). This is a “journey process” build. Each step is full of information about the mechanical features of the plane and educational; like how the paint, when weathered, will change color from green to brown. Interesting information like that is sprinkled throughout the pages of the instructions.

Within this Ki-100 box of plastic parts are hours of fun and building memories. Some of them are a joy and while others tested your skills. Once completed, a beautiful model will be displayed on your shelf along with the satisfaction of finishing it.

I want to thank Zoukei-Mura for providing the Ki-100 kit and IPMS/USA for allowing me the opportunity to review. Definitely a kit for large scale aviation enthusiasts and WWII Japanese airplane fans.

Highly Recommended!
